We Are Proud To Offer The Option To ‘Try Before You Buy’ – Contact Us For Further Details
We Are Proud To Offer The Option To ‘Try Before You Buy’ – Contact Us For Further Details
£12 799.00 ex VAT

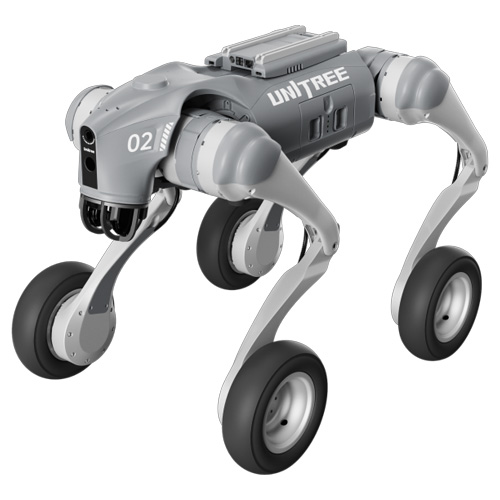

Waterproof and built for rugged terrain, the Unitree Go2W Smart Edition Quadruped Robot features 7-inch pneumatic tyres, a powerful Jetson Orin NX AI dock, and a Realsense D435i depth camera. Designed for high-performance outdoor robotics and secondary development, with support for an optional D1 mechanical arm.
Item Made-to-Order
Click here to contact us
All items made-to-order- please allow 2-8 weeks
The Unitree Go2W Smart Edition is an advanced quadruped robot optimised for rugged terrain and field research. Outfitted with 7-inch pneumatic tyres and a Jetson Orin NX AI expansion dock, this model offers improved obstacle negotiation, long runtime, and full waterproof protection. It includes a Realsense D435i depth camera and supports the optional D1 robotic arm, making it the ideal choice for autonomous navigation, AI-driven projects, and robotics education in challenging outdoor environments.
The Unitree Go2W Smart Edition delivers advanced performance where rugged conditions meet AI-driven robotics. Whether you’re mapping unstructured environments or pushing the limits of field AI, this model provides the mobility and power you need. Contact our team to explore your project requirements and request a demonstration.
This product includes a one-year warranty covering manufacturing defects and technical support for hardware and electronics.
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Stand Height | 70×31×40 cm | Same | Same |
| Weight (With Battery) | ~15 kg | Same | Same |
| Material | Aluminium alloy + High-strength engineering plastic | Same | Same |
| Voltage | 28V–33.6V | Same | Same |
| Peaking Capacity | ~3000W | Same | Same |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Payload | ~7kg (Max ~10kg) | ~8kg (Max ~10kg) | ~8kg (Max ~12kg) |
| Speed | 0–2.5 m/s | 0–3.5 m/s | 0–3.7 m/s (Max ~5 m/s) |
| Max Climb Drop Height | ~15 cm | Same | ~16 cm |
| Max Climb Angle | 30° | Same | 40° |
| Basic Computing Power | 8-core High-performance CPU | Same | Same |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Peak Joint Torque [1] | ~45 N·m | Same | Same |
| Range of Motion | Body: ±48° Thigh: -200° to 90° Shank: -156° to -48° |
Same | Same |
| Intra-joint Circuit (knee) | ✓ | ✓ | ✓ |
| Joint Heat Pipe Cooler | ✓ | ✓ | ✓ |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Super-wide-angle 3D LIDAR | ✓ | ✓ | ✓ |
| Wireless Vector Positioning Tracking Module | X | ✓ | ✓ |
| HD Wide-angle Camera | ✓ | ✓ | ✓ |
| Foot-end Force Sensor | X | X | ✓ |
| Feature | AIR | PRO | EDU |
|---|---|---|---|
| Basic Action | ✓ | ✓ | ✓ |
| Auto-scaling Strap | X | ✓ | X |
| OTA Upgrades | ✓ | ✓ | ✓ |
| RTT2.0 Image Transmission | ✓ | ✓ | ✓ |
| Graphical Programme | ✓ | ✓ | ✓ |
| Front Lamp | ✓ | ✓ | ✓ |
| WiFi6 with Dual-band | ✓ | ✓ | ✓ |
| Bluetooth 5.2/4.2/2.1 | ✓ | ✓ | ✓ |
| 4G | X | ✓ | ✓ |
| Voice Function [2] | X | ✓ | ✓ |
| ISS 2.0 | X | ✓ | ✓ |
| Intelligent Detection and Avoidance | ✓ | ✓ | ✓ |
| Charging Pile Compatibility | X | X | ✓ |
| Secondary Development [3] | X | X | ✓ |
| Accessory | AIR | PRO | EDU |
|---|---|---|---|
| Handheld Controller | Optional | Optional | Standard |
| Docking Station | X | X | Optional Nvidia Jetson Orin |
| Smart Battery | Standard (8000mAh) | Standard (8000mAh) | Long endurance (15000mAh) |
| Endurance | About 1–2h | About 1–2h | About 2–4h |
| Charger | Standard (33.6V 3.5A) | Standard (33.6V 3.5A) | Fast charge (33.6V 9A) |
* The above parameters may vary in different scenarios and configurations. Please refer to actual situations.
* If any changes occur in the appearance of the product, please refer to the actual product.
* This product is a civilian robot. We kindly request all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[1] The maximum torque in the table refers to the largest joint motor; actual torque varies by motor.
[2] Voice functions include offline interaction, commands, intercom, and music play.
[3] For further details, please consult the secondary development manual.
