Description

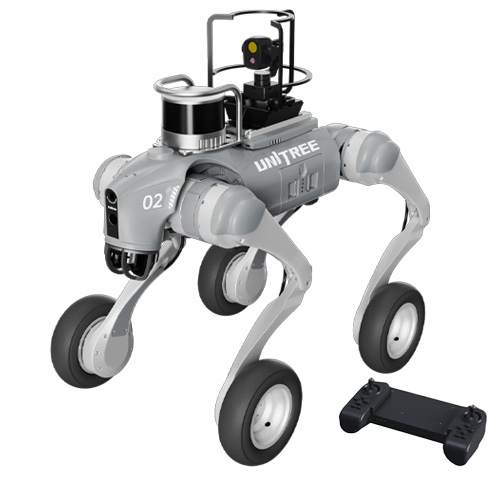

Unitree Go2W Edu U5 Quadruped Robot – Advanced Inspection Platform with Gimbal & Thermal Imaging

The Unitree Go2W Edu U5 is the most advanced wheeled robot in the Go2W education lineup. Built on the robust Edu U4 foundation with integrated Hesai XT16 LiDAR, RealSense depth camera, and Orin NX AI computing dock, this version adds a precision inspection system featuring a dual-optical gimbal and thermal imaging capabilities. It’s the ideal platform for university labs, robotics competitions, or AI research projects focusing on environment monitoring, search and rescue simulation, or autonomous inspection tasks.

Key Features:

• Based on Edu U4: Includes Hesai XT16 3D LiDAR, RealSense D435i, and Orin NX AI computing module.
• Dual-Optical Gimbal Inspection Camera: PTZ camera with high-precision three-axis stabilisation and thermal imaging sensor.
• Thermal Imaging Sensor: 640×512 resolution, 8–14μm band range, accurate across low and high gain ranges.
• Advanced Gimbal Parameters:
  • Angular jitter: ±0.01°
  • Pitch: -90° to +25°
  • Horizontal: -270° to +270°
  • Roll: -45° to +45°
• Real-Time Environment Scanning: Capture and analyse both visual and thermal imagery simultaneously.

Performance Specifications:

• Movement Speed: 0 – 2.5 m/s
• Standing Dimensions: 70 cm x 43 cm x 50 cm
• Weight (with battery): ~18 kg
• Max Climbing Height: ~70 cm
• Wheels: 7-inch pneumatic tyres
• Battery: 15,000mAh, Runtime: 2–4 hours

Important Notice:

This is a standard hardware platform. It does not include customisation services, navigation/mapping setup, backend software, site survey, or on-site deployment. Ideal for institutions developing their own autonomous solutions.

Ideal Use Cases:

• Academic inspection and robotics research
• SLAM, object detection, and autonomous navigation projects
• Simulated search and rescue robotics testing
• Thermal analysis and inspection automation studies

Package Includes:

• Unitree Go2W Edu U5 Robot with wheels
• Dual-optical PTZ camera with thermal imaging
• RealSense D435i depth camera
• Hesai XT16 3D laser radar with navigation algorithm support
• Orin NX AI computing dock (100TOPs)
• High-capacity battery & charger

Need High-Precision Vision for Your Research?

Push the boundaries of robotics with the Go2W Edu U5—equipped for dual-mode optical inspection, LiDAR navigation, and AI processing. Speak to our robotics experts to explore how this platform can support your goals.

Warranty

All Go2W Edu U5 robots include a 1-year warranty covering the entire platform and core components, including thermal and visual gimbals.
