£15 999.00 ex VAT

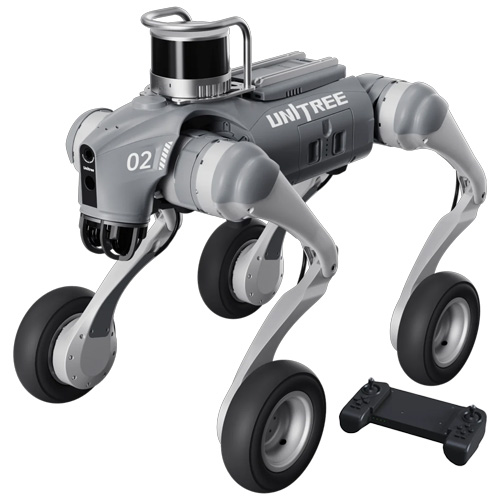

The Unitree Go2W Edu U4 is a wheeled quadruped robot engineered for high-level robotics education and autonomous AI research. Featuring the full capabilities of the Edu U2 model, it includes a Hesai XT16 3D LiDAR system with navigation algorithms and technical support for real-time environmental mapping and SLAM development.
Item Made-to-Order
Click here to contact us
All items made-to-order- please allow 2-8 weeks
The Unitree Go2W Edu U4 is a high-performance quadruped robot tailored for autonomous robotics research, SLAM development, and academic experimentation. Building upon the Edu U2 platform, this model integrates the advanced Hesai XT16 3D laser radar system with full navigation algorithm support. The pneumatic wheels and RealSense D435i camera enhance stability and depth perception, while the onboard Orin NX provides 100TOPs of AI processing power—making this robot a top-tier solution for educational institutions and AI labs.
The Go2W Edu U4 offers unmatched AI and SLAM development capabilities in a mobile, wheeled quadruped form. Contact our robotics team for expert advice and deployment support.
This product includes a one-year warranty covering the entire machine, including LiDAR, AI dock, and core robotics hardware.
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Stand Height | 70×31×40 cm | Same | Same |
| Weight (With Battery) | ~15 kg | Same | Same |
| Material | Aluminium alloy + High-strength engineering plastic | Same | Same |
| Voltage | 28V–33.6V | Same | Same |
| Peaking Capacity | ~3000W | Same | Same |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Payload | ~7kg (Max ~10kg) | ~8kg (Max ~10kg) | ~8kg (Max ~12kg) |
| Speed | 0–2.5 m/s | 0–3.5 m/s | 0–3.7 m/s (Max ~5 m/s) |
| Max Climb Drop Height | ~15 cm | Same | ~16 cm |
| Max Climb Angle | 30° | Same | 40° |
| Basic Computing Power | 8-core High-performance CPU | Same | Same |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Peak Joint Torque [1] | ~45 N·m | Same | Same |
| Range of Motion | Body: ±48° Thigh: -200° to 90° Shank: -156° to -48° |
Same | Same |
| Intra-joint Circuit (knee) | ✓ | ✓ | ✓ |
| Joint Heat Pipe Cooler | ✓ | ✓ | ✓ |
| Type | AIR | PRO | EDU |
|---|---|---|---|
| Super-wide-angle 3D LIDAR | ✓ | ✓ | ✓ |
| Wireless Vector Positioning Tracking Module | X | ✓ | ✓ |
| HD Wide-angle Camera | ✓ | ✓ | ✓ |
| Foot-end Force Sensor | X | X | ✓ |
| Feature | AIR | PRO | EDU |
|---|---|---|---|
| Basic Action | ✓ | ✓ | ✓ |
| Auto-scaling Strap | X | ✓ | X |
| OTA Upgrades | ✓ | ✓ | ✓ |
| RTT2.0 Image Transmission | ✓ | ✓ | ✓ |
| Graphical Programme | ✓ | ✓ | ✓ |
| Front Lamp | ✓ | ✓ | ✓ |
| WiFi6 with Dual-band | ✓ | ✓ | ✓ |
| Bluetooth 5.2/4.2/2.1 | ✓ | ✓ | ✓ |
| 4G | X | ✓ | ✓ |
| Voice Function [2] | X | ✓ | ✓ |
| ISS 2.0 | X | ✓ | ✓ |
| Intelligent Detection and Avoidance | ✓ | ✓ | ✓ |
| Charging Pile Compatibility | X | X | ✓ |
| Secondary Development [3] | X | X | ✓ |
| Accessory | AIR | PRO | EDU |
|---|---|---|---|
| Handheld Controller | Optional | Optional | Standard |
| Docking Station | X | X | Optional Nvidia Jetson Orin |
| Smart Battery | Standard (8000mAh) | Standard (8000mAh) | Long endurance (15000mAh) |
| Endurance | About 1–2h | About 1–2h | About 2–4h |
| Charger | Standard (33.6V 3.5A) | Standard (33.6V 3.5A) | Fast charge (33.6V 9A) |
* The above parameters may vary in different scenarios and configurations. Please refer to actual situations.
* If any changes occur in the appearance of the product, please refer to the actual product.
* This product is a civilian robot. We kindly request all users refrain from making any dangerous modifications or using the robot in a hazardous manner.
[1] The maximum torque in the table refers to the largest joint motor; actual torque varies by motor.
[2] Voice functions include offline interaction, commands, intercom, and music play.
[3] For further details, please consult the secondary development manual.
