Description

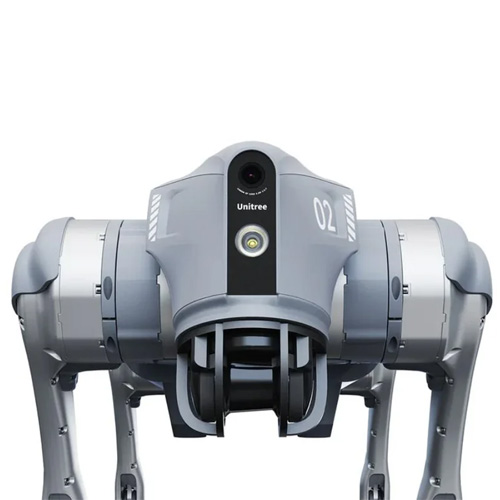

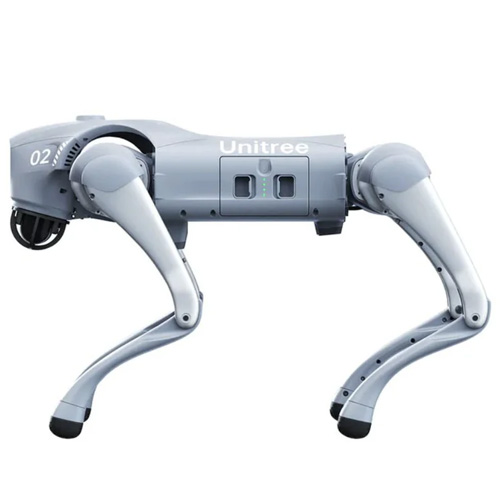

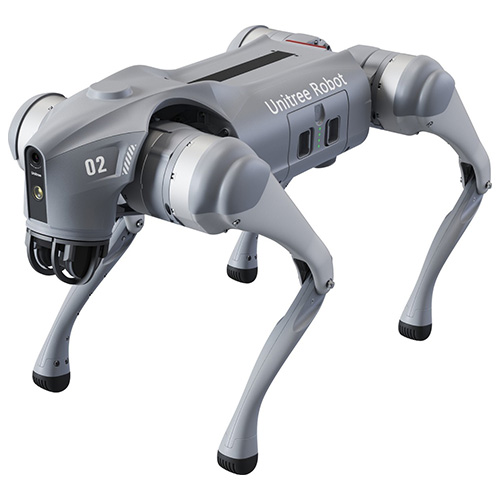

Unitree Go2 Air Quadruped Robot – Agile, Intelligent, Autonomous

The Unitree Go2 Air is a compact, highly dynamic quadruped robot designed for cutting-edge applications in research, education, inspection, and development. As the latest evolution in agile mobile robotics, the Go2 Air builds on the legacy of Unitree’s world-renowned quadruped platforms by offering improved power, AI-assisted navigation, and flexible control interfaces, all in a sleek and durable form factor.

Key Features:

• High-Performance Mobility: Capable of speeds up to 12 km/h with enhanced gait stability on diverse terrain and a climbing slope of up to 30°.
• Climbing Capability: Can climb vertical obstacles up to 15 cm high, with optimised joint range for agile motion.
• Intelligent Perception: Equipped with ultra-wide-angle 3D LiDAR and a wide-angle HD camera for object detection, SLAM, and real-time obstacle avoidance.
• Creative Motion: Supports moon step (space walk), jump up, front flip, happy dance, side step, bow, and other programmable movements for expressive mobility.
• Joint Design & Cooling: Internal cable routing through the knees and integrated joint heat pipes assist in thermal dissipation and durability.
• Smart OTA Upgrade: Over-the-air firmware upgrades ensure the robot platform remains up-to-date with the latest features.
• App-Based Control: Mobile app includes HD image transmission, real-time telemetry, and drag-and-drop graphical programming interface.
• Advanced Control Options: Operated via mobile app, optional handheld remote controller, or SDKs (Python/C++) for full flexibility.
• Wireless Communication: Supports WiFi 6 (dual-band 802.11ax) and Bluetooth 5.2/4.2/2.1 for stable connectivity in lab or field conditions.
• Open SDK for Developers: Compatible with ROS, Gazebo, and unitree_api for robotics research and systems integration.

Technical Specifications:

• Weight: Approx. 15 kg (including battery)
• Top Speed: 12 km/h (0–2.5 m/s)
• Battery: 8000 mAh Li-ion (runtime: 1–2 hours)
• Charging Adapter: 33.6V / 3.5A standard charger
• Load Capacity: ~7 kg (maximum limit: ~10 kg)
• Dimensions: 70 × 31 × 40 cm
• Climbing Height: Up to 15 cm
• Climbing Slope: Up to 30°
• Joint Movement Range: Body: -48° to +48°, Thigh: -200° to +90°, Calf: -156° to -48°
• Operating System: Unitree Robotics OS (Linux-based)
• Interfaces: USB, Ethernet, GPIO, UART
• Control Range: Up to 100 m

Applications:

• Autonomous navigation and SLAM research
• Educational robotics and university engineering labs
• Surveillance and inspection in challenging environments
• Search and rescue training and simulation
• AI and computer vision testing platforms

Included in the Go2 Air Package:

• Unitree Go2 Air Quadruped Robot
• Standard Battery (8000 mAh)
• Charging Adapter (33.6V 3.5A)
• Wireless Remote Controller (optional add-on)
• Basic Tool Kit
• Documentation & Software Access

Expert Support and UK-Based Service

As an authorised reseller, Thermal Vision Direct offers technical guidance, integration advice, and aftersales support for all Unitree robotic platforms. Whether you’re building a university research project or deploying inspection robotics in the field, we provide full onboarding support and custom bundles.

Warranty

The Unitree Go2 Air comes with a 6-month warranty covering manufacturing defects and performance issues under normal usage.

Need Help Choosing the Right Platform?

Thermal Vision Direct we offer technical guidance, integration advice, and aftersales support for all Unitree robotic platforms. Whether you’re building a university research project or deploying inspection robotics in the field, we provide full onboarding support and custom bundles. Get in touch here.
