Description

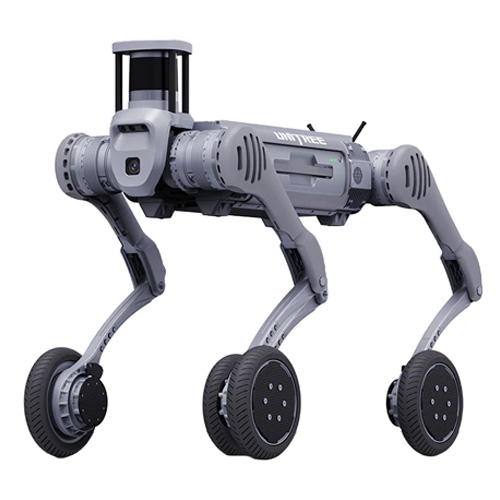

Unitree B2-W Quadruped Robot with 32-Line LiDAR – Hybrid Mobility Meets Precision Sensing

The Unitree B2-W with 32-Line LiDAR is a cutting-edge leg-wheeled quadruped robot engineered for intelligent movement and advanced perception. Designed for rugged terrain, it features high-reliability shock-absorbing wheels and seamless transformation between leg and wheel modes, supported by a dynamic structural design.

Equipped with the RS-Helios 32-Line LiDAR sensor and protective frame, the B2-W enhances its ability to perceive the environment in 3D with a 70° field of view. Whether deployed in R&D, industrial inspection, or security applications, this robot is built to deliver speed, load-bearing capacity, and autonomous performance across complex surfaces.

Key Features:

• Leg-Wheel Hybrid System: Transitions smoothly between wheeled and legged locomotion using modular hardware conversion.
• 32-Line LiDAR (RS-Helios): High-resolution 3D environment scanning with a 70° field of view and protective enclosure.
• Top Speed: Achieves 6m/s (21.6 km/h), among the fastest in quadruped robots.
• Load Capacity: Carries ≥40kg while maintaining full mobility.
• Terrain Mastery: Adapts to uneven, slippery, and complex terrains with stability and speed.
• Climb Capability: Scales stairs with step heights of up to 16cm.
• Comprehensive Visual System: Multiple depth and HD cameras enhance navigation and decision-making.

Technical Specifications:

• Weight (with battery): Approx. 75kg
• Dimensions (standing): 1098mm (L) × 450mm (W) × 745mm (H)
• Max Speed: Up to 6m/s (21.6 km/h)
• Climbing: Stairs up to 16cm high
• Load Capacity: ≥40kg while walking or wheeling
• Wheels: 4 high-reliability shock-absorbing tyres
• Sensor Suite: 32-Line RS-Helios LiDAR (70° FoV), depth cameras, and high-definition cameras

Need More Information?

If you need assistance, a product demo, or more details to match your specific application needs, the team at Thermal Vision Direct is here to help. As a Unitree authorised reseller, we are the trusted choice for delivering expert advice and solutions tailored to your requirements. Contact us today and let us support you in making the best decision for your robotics application.

Warranty

Includes a 1-year warranty covering the robot platform and 32-Line LiDAR sensor assembly.
