£17,000.00 – £19,500.00 ex VAT
The FLIR A700 Science Kit delivers advanced thermal imaging with an exceptional resolution of 640 × 480 pixels. Available in Standard and Professional configurations, it’s designed for precise R&D, material testing, and diagnostics. Includes FLIR Research Studio for intuitive data analysis.
Click here to contact us
2 to 3 weeks
The FLIR A700 Science Kit is built for professionals who demand top-tier thermal imaging and reliable temperature measurement. Featuring an outstanding thermal resolution of 640 × 480 pixels, this kit provides exceptional clarity and precision for research and development, material testing, and industrial diagnostics. With simplified connections and the powerful FLIR Research Studio software, the A700 Science Kit allows users to collect, analyse, and share data seamlessly.
The FLIR A700 Science Kit is available in two configurations to suit varying needs:
The FLIR A700 Science Kit is ideal for:
At Thermal Vision Direct, we are dedicated to providing top-quality thermal imaging solutions. The FLIR A700 Science Kit is backed by expert support and competitive pricing. Whether you’re selecting the Standard or Professional configuration, our team is here to help you find the perfect solution.
Contact Us Today to learn more
| Detector Data | Standard Kit | Professional Kit |
|---|---|---|
| IR resolution | 320 × 240 (A400), 464 × 348 (A500), or 640 × 480 (A700) | |
| Thermal resolution/NETD | 30 mK to <40 mK @ 30°C (86°F) | |
| Focal plane array/spectral range | Uncooled microbolometer | |
| Detector pitch | 24 μm, 17 μm, or 12 μm – camera dependent | |
| Spectral range | 7.5 μm to 14.0 μm | |
| Frame Rate | 30 Hz | |
| Image and Optical Data | ||
| Camera f/# | Lens dependent | |
| Included Lenses | 24° | 24°, 2.0X Macro |

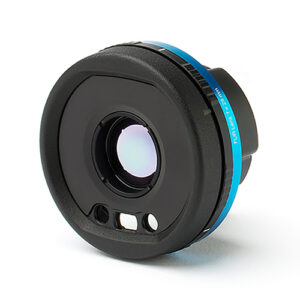

| Optional Lenses | 2.0X Macro, DFOV (24°/14°), 6°, 14°, 42°, 80° | DFOV (24°/14°), 6°, 14°, 42°, 80° |
| Macro Mode | Included | |
| Lens identification | Automatic | |
| Focus | One-shot contrast, motorized, manual | |

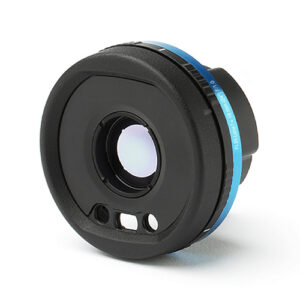

| Minimum focus distance | 2.0X Macro: 18 mm (0.71 in) 6°: 5.0 m (16.4 ft) 14°: 1.0 m (3.28 ft) DFOV (24°/14°): 0.18 m (0.59 ft) and 1.0 m (3.28 ft) 24° with Macro Mode: 17 mm (0.67 in) 24°: 0.15 m (0.49 ft) 24° f/1.0: 0.3 m (0.98 ft) 42°: 0.15 m (0.49 ft) 80°: 0.1 m (3.9 in) |
|
| Visual Camera | Optional | 5 Megapixel |
| Measurement | ||
| Standard Temperature Ranges | -20°C to 120°C (-4°F to 248°F) | 0°C to 650°C (32°F to 1202°F) A400/A500: 300°C to 1500°C (572°F to 2732°F) A700: 300°C to 2000°C (572°F to 3632°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F) | |
| Image Presentation | ||
| Digital data | Via workstation running included Research Studio Software | |
| Data Streaming & Control | Gigabit Ethernet (RTSP, GigE Vision) | Gigabit Ethernet (RTSP, GigE Vision), Wi-Fi |
| Dynamic Range | 16-bit | |
| Image Modes in Research Studio | Infrared | Infrared, Visual, MSX® |
| Wi-Fi | Optional, Female RP-SMA, IEEE802.11a/b/g/n | |
| Connections | ||
| Gigabit Ethernet | Standard, Peer to peer (ad hoc) or infrastructure (network) | |
| Ethernet Image Streaming | Yes | |
| Connector type | M12 8-pin X-coded, female | |
| Ethernet power | Power over Ethernet, PoE IEEE 802.3af class 3 | |
| Ethernet communication | GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary) | |
| Digital Input/Output | Connector type: M12 Male 12-pin A-coded (shared with ext. power) | |
| Digital input | 2× opto-isolated, Vin (low) = 0 V to 1.5 V, Vin (high) = 3 V to 25 V | |
| Digital output | 3× opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC) | |
| Power System | ||
| Connector type | M12 Male 12-pin A-coded (shared with Digital I/O) | |
| Power over Ethernet or External | External voltage: 24/48 VDC, 8 W max | |
| General | ||
| Operating Temperature Range | -20°C to 40°C (-4°F to 104°F) (in free air) 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) Maximum camera case temperature: 65°C (149°F) |
|
| Storage Temperature Range | IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours | |
| Encapsulation | IEC 60529, IP54, IP66 with accessory | |
| Shock | IEC 60068-2-27, 25 g | |
| Vibration | IEC 60068-2-6, 0.15 mm at 10 Hz to 58 Hz and 2 g at 58 Hz to 500 Hz, sinusoidal | |
| Size | 123 mm × 77 mm × 77 mm (4.84 in × 3.03 in × 3.03 in) | |
| Weight (including 24° lens) | 0.82 kg (1.8 lb) | |
| Mounting | UNC ¼”-20 on 2 sides 4× M4 on 4 sides | |
